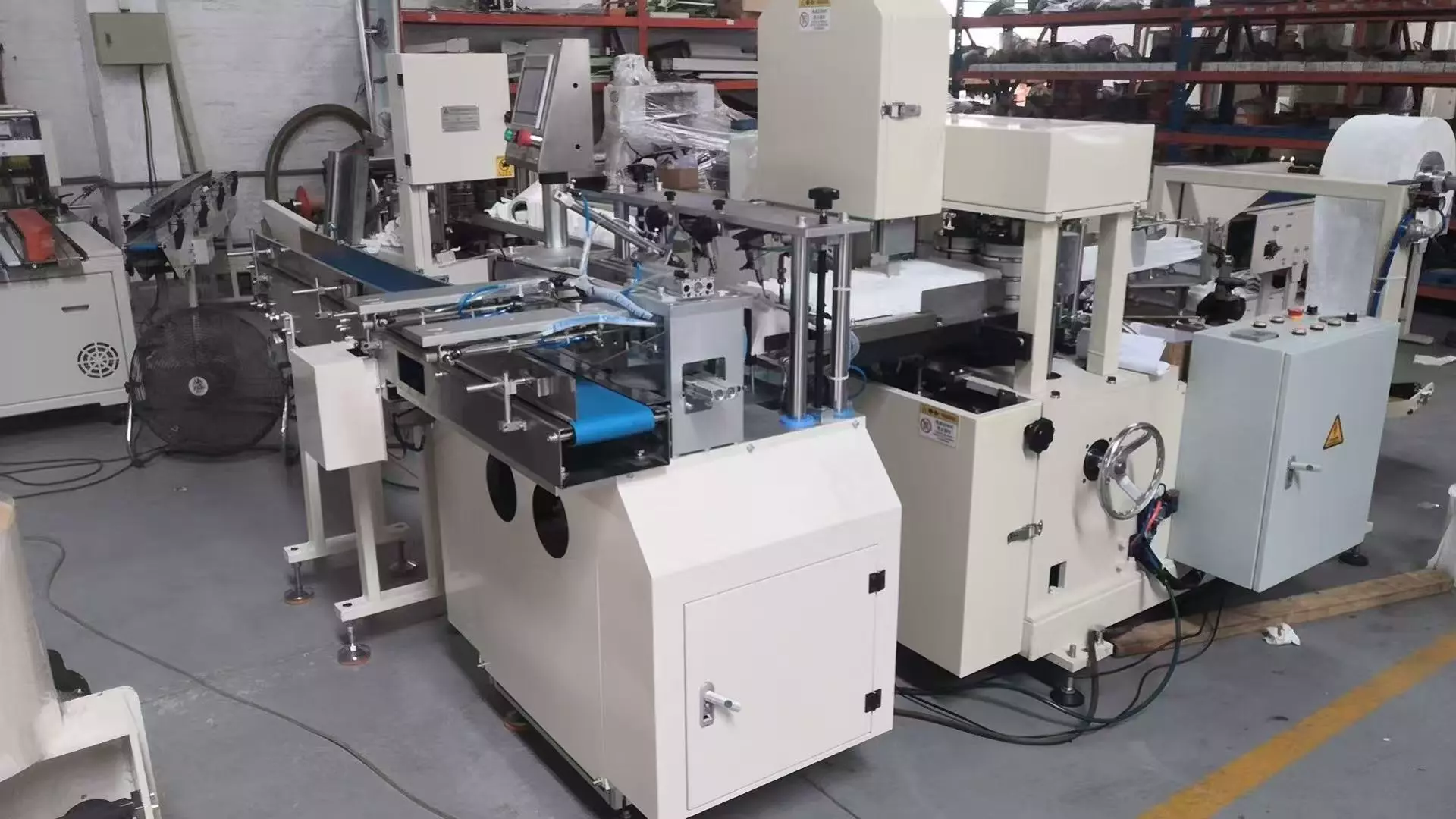

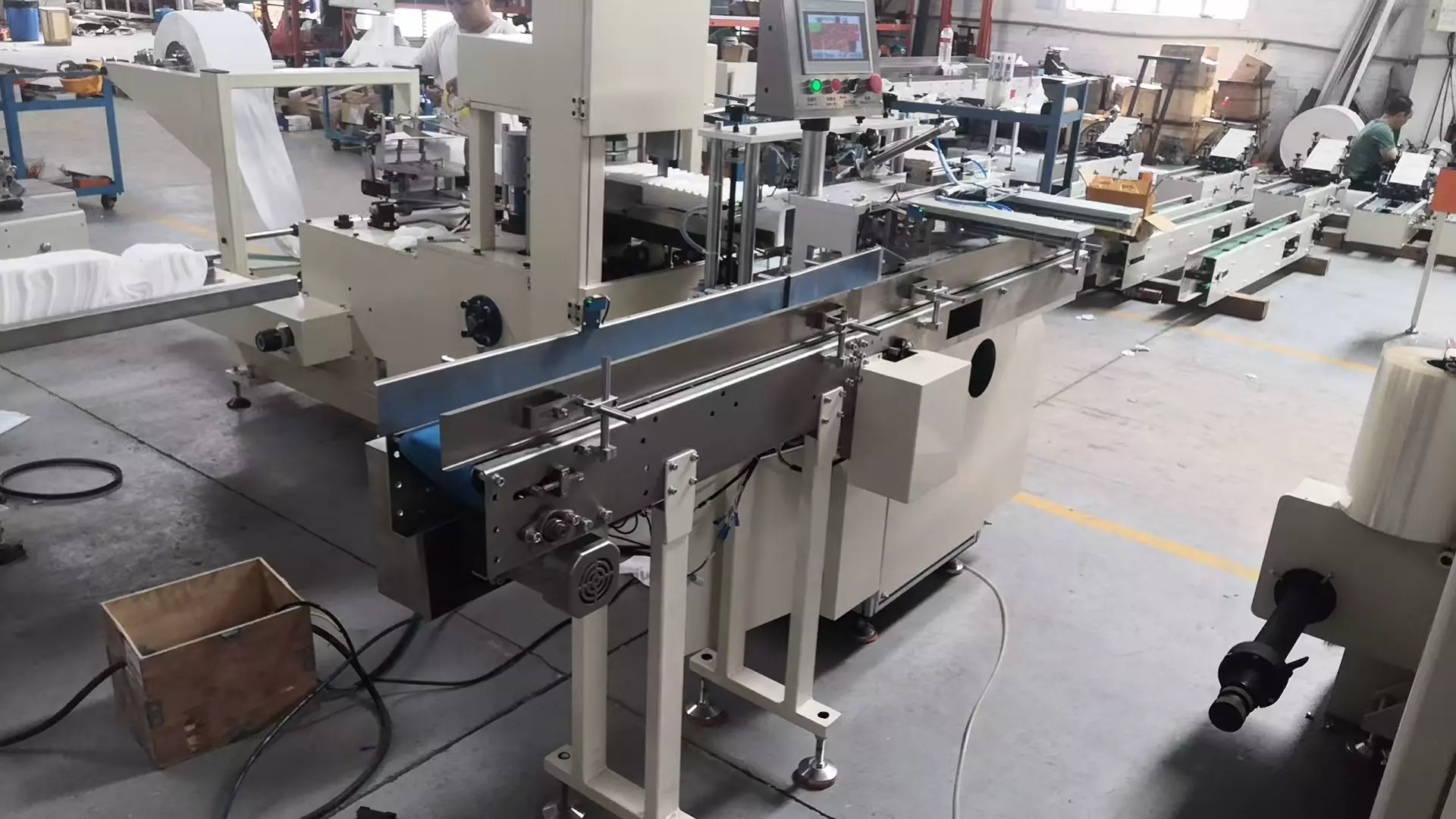

Napkin Paper Machine

Categories: Napkin Paper Machine

Brand: ALX

MOQ: 1 Pieces

Delivery time: 25 Day

Email：ailixingmachinery2018@gmail.com

WhatsApp：+8615999852935

We have been focusing on the post-processing of household paper for 17 years, independently developing and producing a full range of intelligent equipment, providing one-stop solutions from folding, slitting, rewinding to packaging. Covering core models such as paper drawers, roll rewinders, handkerchief production lines, boxed facial tissue equipment, etc. Core advantages:

√ Modular design, support for personalized customization

√ Intelligent PLC control + energy-saving system, yield rate > 99%

√ Full line capacity 200-800 pieces/hour flexible configuration

√ 48-hour after-sales response, glo

Products

Bottom Pull Tissue Machine

Bottom Pull Paper Production Line

Bottom Pull Tissue Folding Machine

Bottom Pull Tissue Cutting Machine

Bottom Pull Tissue Packaging Machine

Facial Tissue Machine

Tissue Paper Production Line

Facial Tissue Folding Machine

Facial Tissue Cutting Machine

Facial Tissue Packaging Machine

Toilet Paper Machine

Toilet Paper Production Line

Toilet Paper Rewinding Machine

Toilet Roll Cutting Machine

Toilet Roll Packaging Machine

Kitchen Paper Machine

Public Hand Towel Machine

Napkin Paper Machine

Latest News

How to choose a toilet paper production line

Tissue packaging machine: an intelligent solution to improve efficiency and quality

How to choose a fully automatic tissue packaging production line?

Is paper towel packaging inefficient? This automated equipment can help you save 30% of labor costs

From Manual to Smart: The Automation Evolution of Tissue Packaging Equipment

Production process

product details

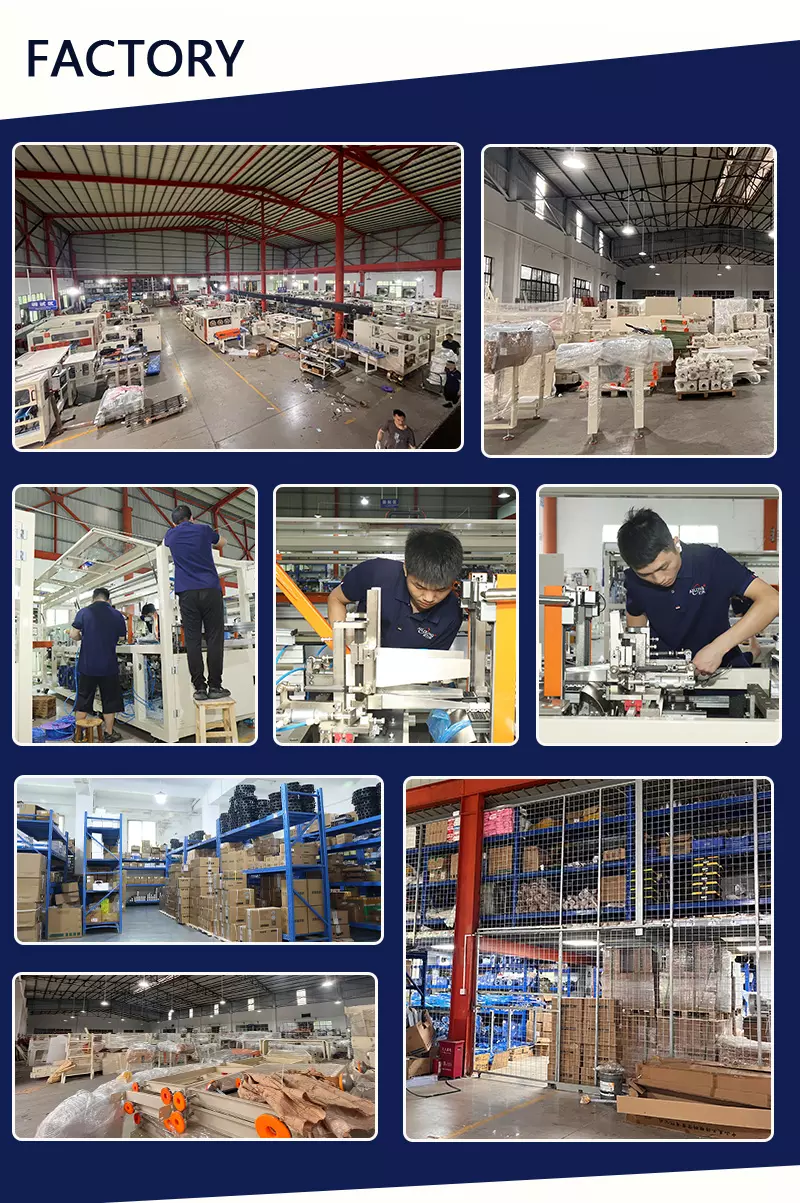

Company environment

Transportation process

video

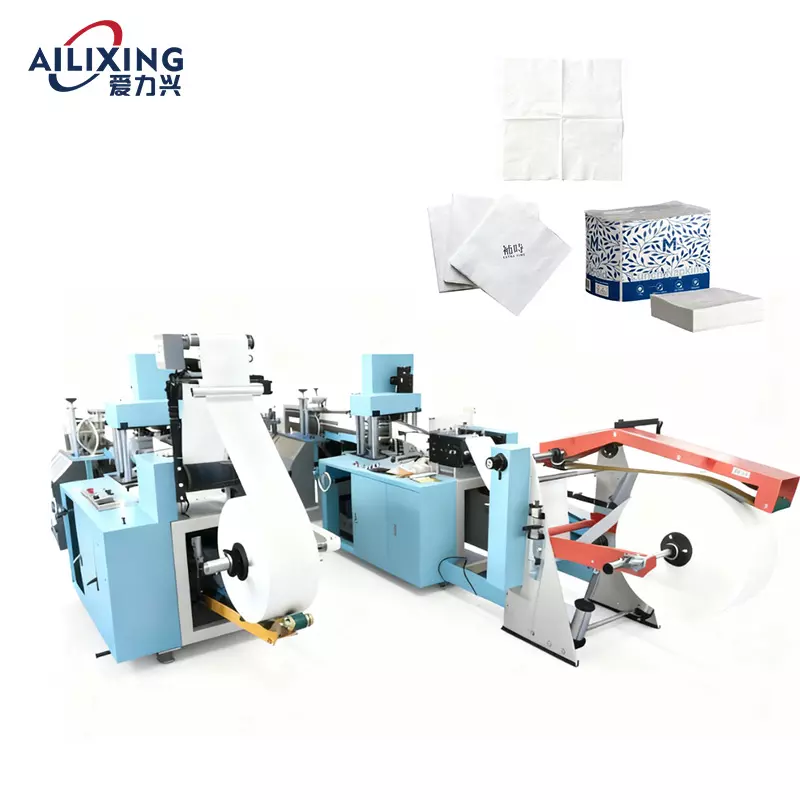

Product Introduction

1. Raw Material Width: 170-200mm.

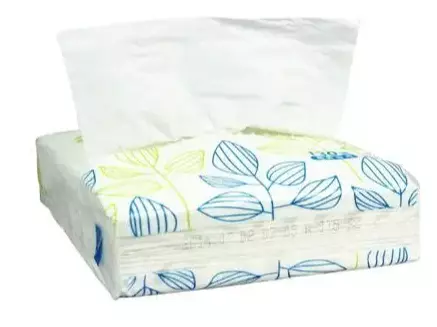

2. Finished Product Dimensions: 200×(170-200)mm±2mm; Folded: (1/8 fold) 100×(85-100)±2mm; Thickness per pack: 15-70mm.

3. Raw Material Diameter: Max Φ1200mm.

4. Raw Material Core: 76.2mm (3 inches).

5. Paper Feeder: Φ1.2m pneumatic feeder, single-layer belt, pneumatic auxiliary feeding. (Φ1500mm customizable)

6. Deviation Correction: Equipped with a deviation corrector; Finished paper edge deviation within ±3mm.

7. Raw Material Requirements: 1st layer ≥18g/m², 2-4 layers 13.5-18g/m², Weight deviation ±0.5g. 8. Control Method: PLC program control, frequency conversion speed regulation, jog paper feeding.

8. Speed Requirements: Max speed 1000 sheets/min with counting; Normal speed 800-850 sheets/min.

9. Embossing Method (Optional): Steel to flat.

Raw material width	170-200mm.
Finished product dimensions	Finished product size 200×(170-200)mm±2mm, folded size (1/8 fold) 100×(85-100)±2mm, thickness per pack between 15-70mm.
Raw material diameter	Maximum Φ1200mm.
Raw material core	76.2mm (3 inches).
Paper feeder	Φ1.2m pneumatic paper feeder, single-layer belt, pneumatic auxiliary paper feeding. (Φ1500mm can be customized)

Factory Price New Napkin Paper Making Machine

10. Frame Type: Laser-cut holes, steel plate bending and forming.
11. Transmission Method: Gear and synchronous belt drive.
12. Counting Method: Electronic pneumatic counting (independent adjustment for one sheet or a group).
13. Stacking Method: PLC control, electronic counting stacking (adjustable sheets per stack, thickness 15-70mm, deviation within 5%), single-sided turning feed function.

14. Stacking Speed: 50-60 stacks/min per machine (depends on sheets stacked).
15. Forming Method: Mechanical. Foldable 1/4 fold
16. Power: Main unit 1.1 KW, band saw 0.55 KW, total 1.65 KW.
17. Dimensions: 4.5 x 1.1 x 1.7 meters (L x W x H)
18. Machine Weight: 1300 KG (split into two sections)
19. Delivery Time: 25 working days
