Toilet Paper Roll Production Line

Home Solution Toilet Paper Roll Production Line

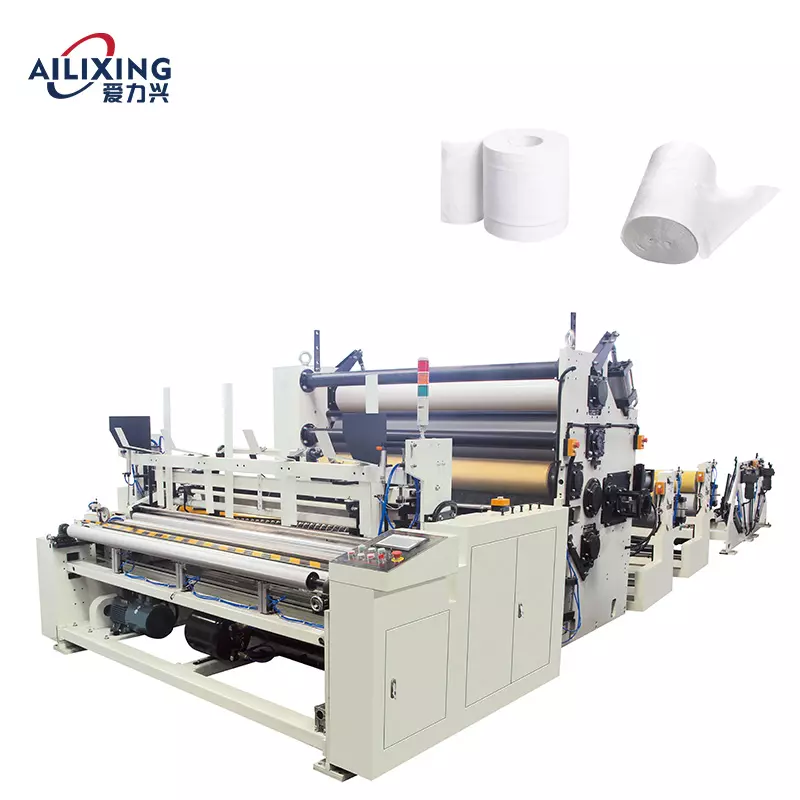

Full Automatic Toilet Roll Complete Production Line

Production Flow

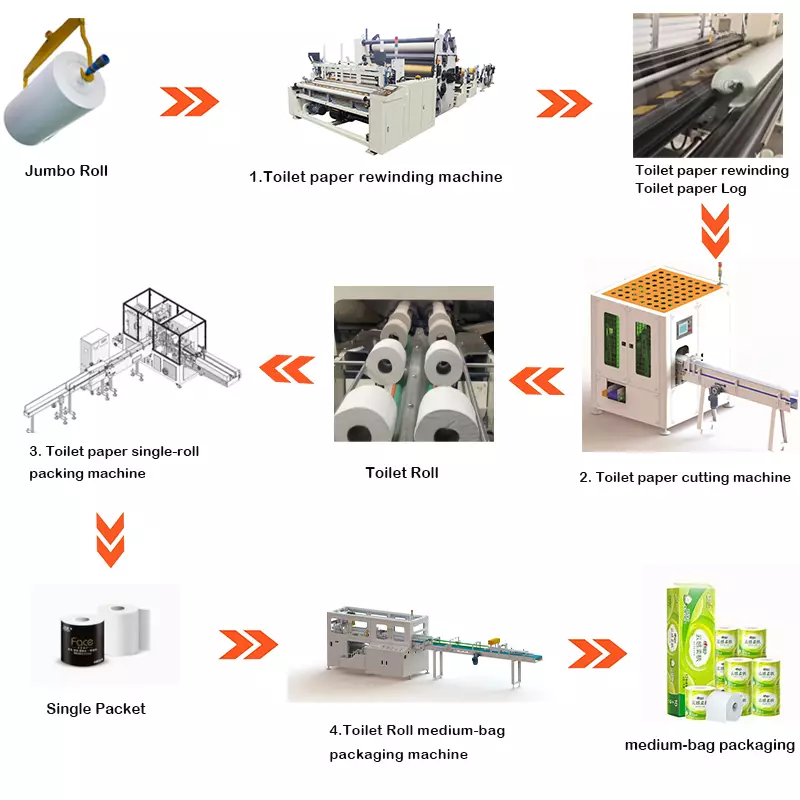

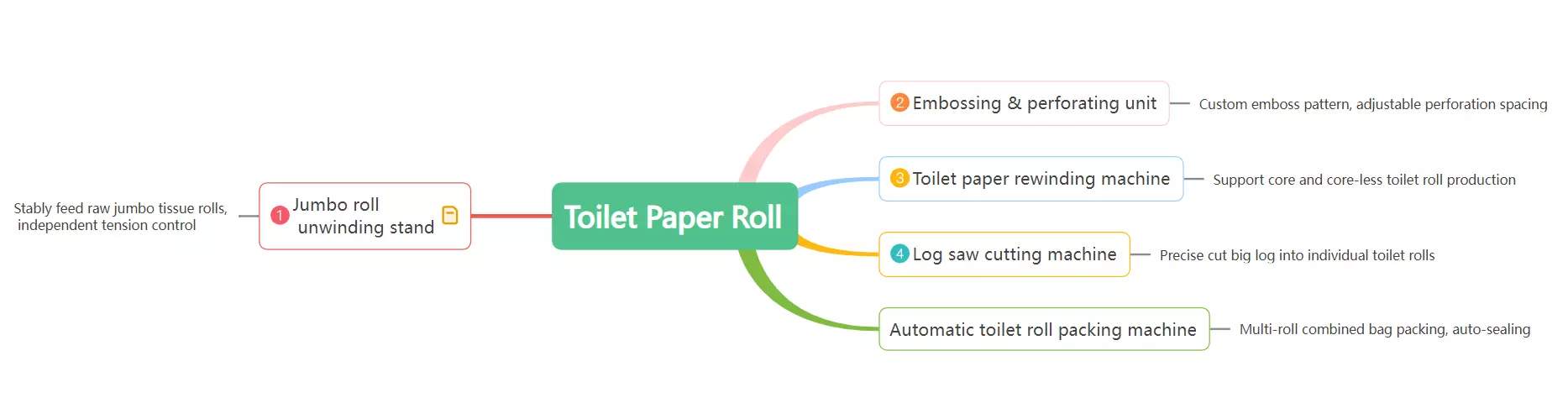

Jumbo roll unwinding → Embossing & Perforating → Rewinding → Log saw cutting → Automatic packing → Finished toilet roll output

Product Overview

This full‑automatic toilet roll production line converts jumbo parent rolls into finished core / core‑less toilet paper rolls.
Integrate unwinding, embossing, perforating, rewinding, log‑saw cutting and automatic packing into one complete production workflow.
Adopt PLC touch‑screen control system, reduce labor cost, fit for new tissue factory building or capacity expansion.

Client Cases

Ailixing toilet paper roll machine manufacturer, meeting all kinds of personalized requirements.

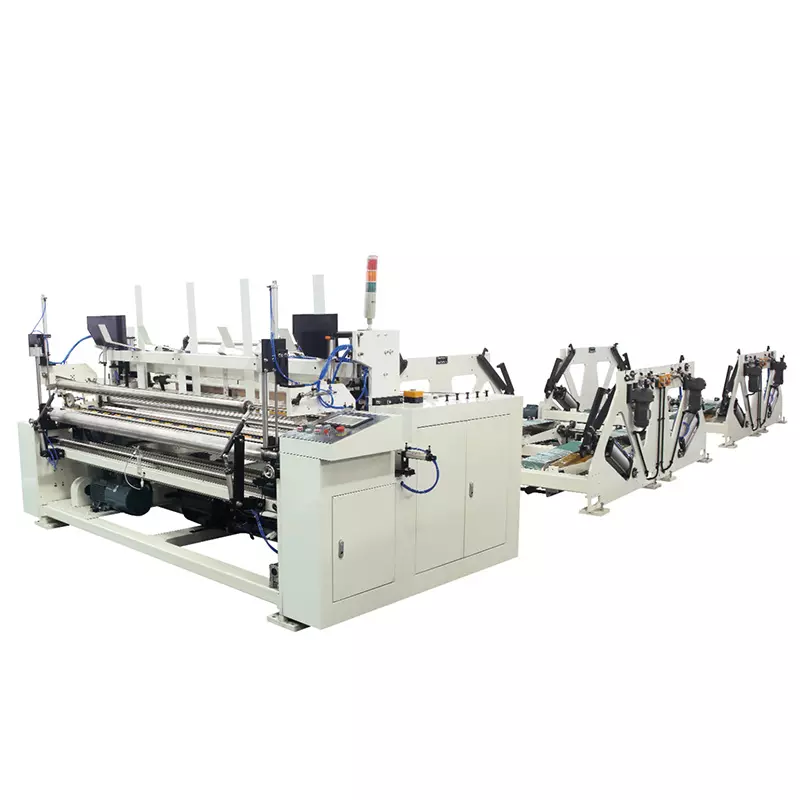

Toilet Paper Rewinder

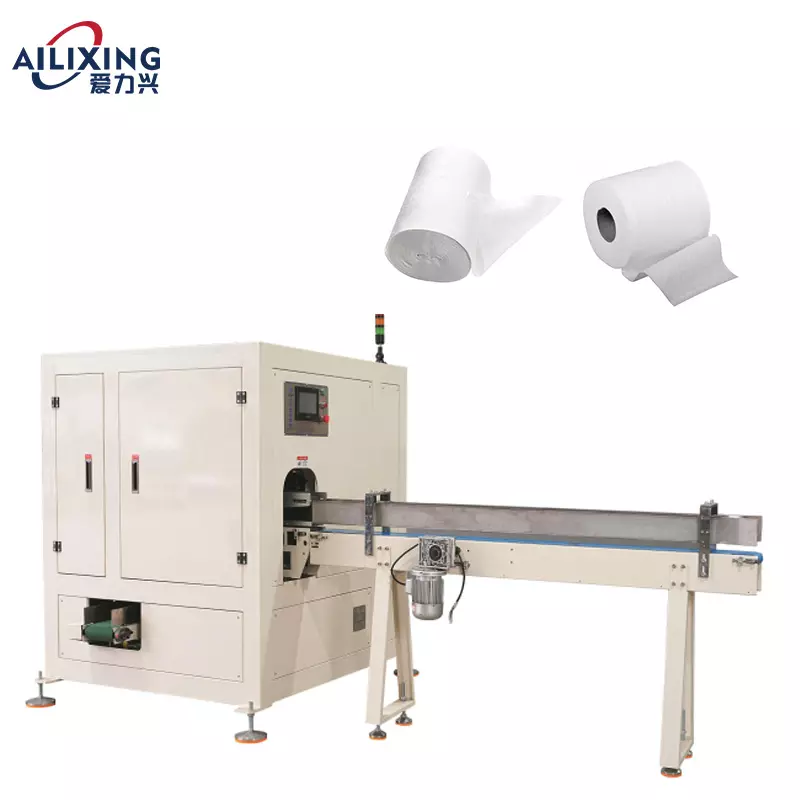

Jumbo Roll Toilet Paper Cutting Machine

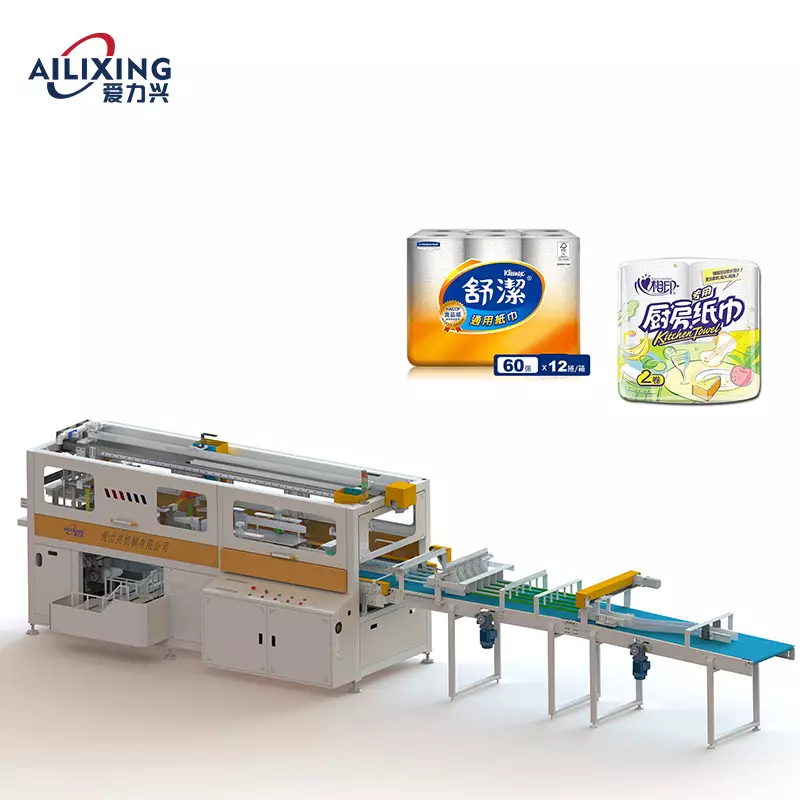

Toilet Paper Packaging Machine

production line details

Machine model	1880 \| 3000 \| 3600 \| 4200
Original paper width 原纸宽度	Under 2200	Under 3,000	Within 3600	Under 4,000
finished product diameter 成品直径	Φ 70-135 (adjustable)
Outer diameter of finished paper core (mm)成品纸芯外径 ( mm )	Φ32-50
Diameter of base paper (mm) 原纸直径 ( mm)	Φ 1200mm is not equal
Inner diameter of the paper core 原纸纸芯内径	Φ76.2mm (Other sizes need to be customized)
Punching pitch (specify) 打孔节距 (请指定)	120mm (other specifications need to be customized) 120mm (其它规格需要定做)
machine speed 机器速度	160~260 meters per minute 160~260 米/分钟
programmable controller 编程控制器	PLC computer programming PLC 电脑编程
Retire the paper rack 退纸架	1-4 layers (number of layers to be specified) 1-4ply 1-4 层 (层数请指定) 1-4ply
air-operated controller 气动控制	3 air compressors with minimum pressure of 5kg/cm² (provided by customer) 3HP 3 匹空压机，最少压力 5kg/cm² (客户自备) 3HP
motive power 动力	Frequency conversion speed control 7.5-18KW (depending on model and configuration) three-phase 380V 变频调速 7.5- 18KW (根据型号和配置而定) 三相 380V
outline dimension 外形尺寸	According to the model and configuration, the actual size is subject to根据型号与配置，以实际重量为准
machine weight 机器重量	Depending on the model and configuration, the actual weight is subject to根据型号与配置，以实际重量为准
output 产量	2 tons /8 hours and 4 tons /8 hours
wrap-up 收卷装置	With core/Coreless device 有芯/无芯装置
knurling 压花	Single side embossing, double side embossing, steel to steel embossing (custom) 单面压花，双面压花，钢对钢压花 (定制)
The embossed pattern 压边纹	Steel on steel (custom) 钢对钢 (定制)

序号NO.	中文项目	英文 Item	参数（中文 + English）
1	切纸规格	Cutting Specifications	长 / L=50–300mm、宽 / W=80–120mm、高 / H=20–100mmL=50–300mm, W=80–120mm, H=20–100mm
2	生产速度	Production Speed	20300 切 / 分钟20300 cuts/min
3	控制系统	Control System	PLC 程序控制、伺服驱动、触摸屏操作PLC program control, servo drive, touch screen operation
4	送料方式	Feeding Method	伺服驱动，同步带同步定位传送Servodriven, synchronous belt positioning and conveying
5	切断方式	Cutting Method	360° 旋转360° rotation
6	裁纸精度	Cutting Accuracy	切断误差＜1mmCutting error ＜1mm
7	磨刀系统	Blade Sharpening System	自动磨刀、触摸屏设定参数Automatic blade sharpening, parameter settings via touch screen
8	切纸刀外径	Blade Outer Diameter	Φ610 × 3.8mm
9	所需气压	Required Air Pressure	0.6 Mpa
10	电源类型	Power Supply	380V / 50Hz
11	总功率	Total Power	7.54 KW
12	设备最大尺寸	Maximum Machine Dimensions	长 / L=1770mm × 宽 / W=1400mm × 高 / H=1600mmL=1770mm × W=1400mm × H=1600mm
13	设备重量	Machine Weight	1 吨1 ton
14	设备颜色	Machine Color	电脑白Computer White
15	驱动与控制系统	Drive & Control System	整机伺服系统、PLC、触摸屏，驱动器Full servo system, PLC, touch screen, and drives throughout the machine
16	节能系统	Energy Saving	切刀电机变频器控制，节能省电Cutting motor controlled by frequency inverter for energy saving
17	操作界面	Operation Interface	设备控制操作台为触摸屏Machine control console equipped with touch screen

型号model		ALX-DP200S-2
速度velocity	设计速度 design speed	30包/分 30 packs/min
	生产速度 production rate	25包/分(根据规格而定) 25 packs/min (depending on specification)
功率 power	电机功率 power of motor	10 Kw
	主机加热功率 Host heating power	2.4Kw
整机重量 Overall weight		2000KG
包装合格率 Packaging qualification rate		≥98%
外形尺寸 outline dimension		6900mm×1560mm×1650mm(L×W×H)
电源类型 Power type		交流电380 V （伏）50 Hz（赫兹）
压缩空气用量 Air pressure consumption		6kg/cm2 0.45m3/min
机器噪声 machine noise		≤75分贝（db）
备注:因所需包装的材料不同等类似的情况而使机器相关配置要求不同时，上述数据与实际可能会有一定的出入。 Note: The above data may be different from the actual situation due to different machine configuration requirements due to different packaging materials and similar situations.
